BT50A-15 P/N7Z17204 Beam Trap

Updated:2025-03-13

Brand: Ophir
Model: BT50A-15
Description: The BT50A-15 is a convection cooled beam trap with a 15mm aperture for up to 50W. It can withstand power densities to 16kW/cm2 at full power and has a spectral range from 0.19 to 20μm. Backscattered p
Data download

Feedback
WeChat

QQ

Online Service

Product Details

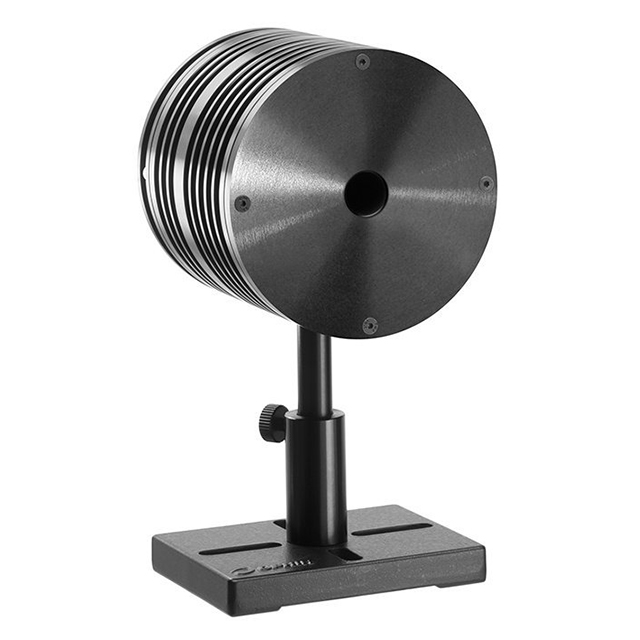

BT50A-15 P/N7Z17204 Beam Trap Introduction：

The BT50A-15 is a convection cooled beam trap with a 15mm aperture for up to 50W. It can withstand power densities to 16kW/cm2 at full power and has a spectral range from 0.19 to 20μm. Backscattered power is below 0.05%

BT50A-15 P/N7Z17204 Beam Trap Drawing：

BT50A-15 Drawing

BT50A-15 P/N7Z17204 Beam Trap Specification：

Aperture	?15mm
Spectral Range	0.19 - 20μm
Power Range	Up to 50W
Dimensions	? 100 W x 100 D (mm)
Max Pulse Energy	1000J
Max Average Power Density	16kW/cm2
Max Energy Density (for <100ns)	4J/cm2
Max Energy Density (for 2ms)	100J/cm2
Backscatter	0.05% or less, typ.
