BDFL500A-BB-50 P/N7Z17200 Beam Dump

Updated:2025-03-13

Brand: Ophir
Model: BDFL500A-BB-50
Description: The BDFL500A-BB-50 is a fan cooled beam dump with a 50mm aperture for up to 500W. It can withstand power densities to 7kW/cm2 at full power and has a spectral range from 0.19 to 20μm.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

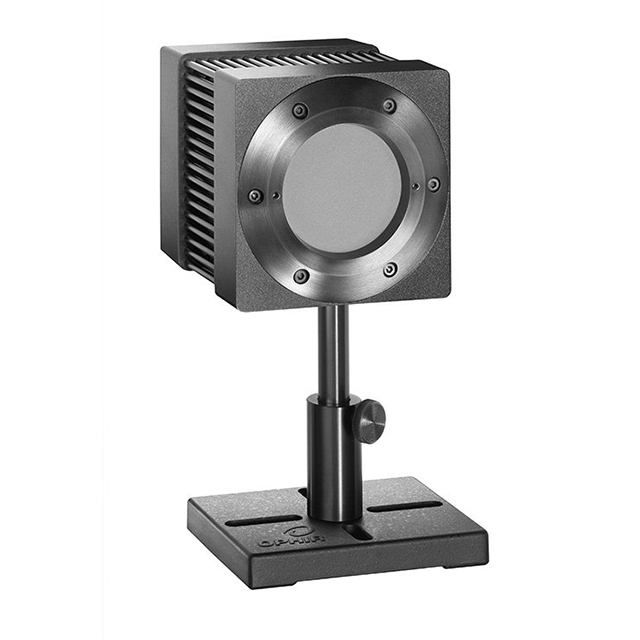

BDFL500A-BB-50 P/N7Z17200 Beam Dump Introduction：

The BDFL500A-BB-50 is a fan cooled beam dump with a 50mm aperture for up to 500W. It can withstand power densities to 7kW/cm2 at full power and has a spectral range from 0.19 to 20μm.

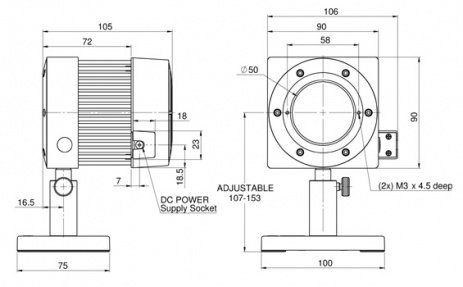

BDFL500A-BB-50 P/N7Z17200 Beam Dump Drawing：

BDFL500A-BB-50 Drawing

BDFL500A-BB-50 P/N7Z17200 Beam Dump Specification：

Aperture	?50mm
Spectral Range	0.19 - 20μm
Power Range	Up to 500W
Dimensions	90 L x 90 W x 105 D (mm)
Max Average Power Density	7kW/cm2
Max Energy Density (for <100ns)	0.3J/cm2
Max Energy Density (for 2ms)	10J/cm2
Backscatter	N.A.
