current position:home page>Products>optical instrument>Ophir>

FL1100A-LP2-65 P/N7Z02784 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: FL1100A-LP2-65
Description: The FL1100A-LP2-65 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 65mm aperture and can measure power from 5W to 1100W and energy
Data download

Feedback
WeChat

QQ

Online Service

Product Details

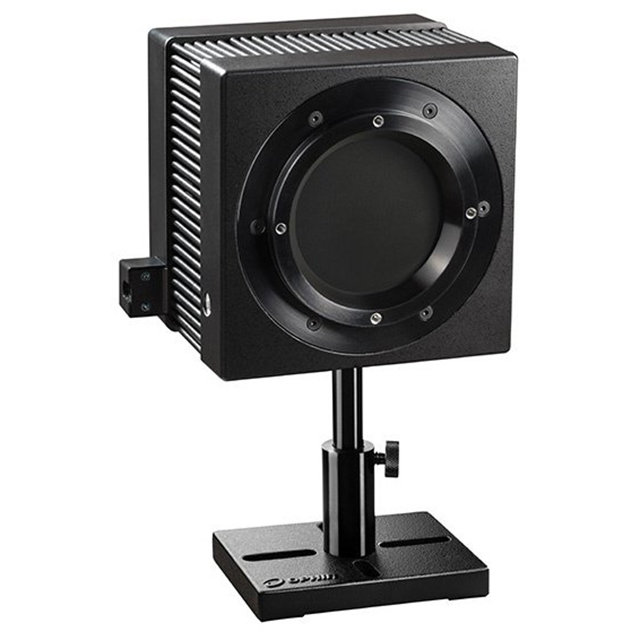

FL1100A-LP2-65 P/N7Z02784 Laser Measurement Sensor Introduction：

The FL1100A-LP2-65 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 65mm aperture and can measure power from 5W to 1100W and energy from 600mJ to 1000J. Its high damage threshold LP2 absorber covers the spectral range from 0.35 to 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

FL1100A-LP2-65 P/N7Z02784 Laser Measurement Sensor Drawing：

FL1100A-LP2-65 Drawing

FL1100A-LP2-65 P/N7Z02784 Laser Measurement Sensor Specification：

Absorber Type	LP2
Aperture	?65mm
Spectral Range	0.35-2.2μm
Power Range	5W-1100W
Energy Range	600mJ-1000J
Backscattered Power	N.A.
Dimensions	128 L x 128 W x 129 D (mm)
Max Pulse Energy	1000J
Max Average Power Density	9kW/cm2
Response Time	4 s
Max Energy Density (for <100ns)	0.1J/cm2
Max Energy Density (for 2ms)	130J/cm2
Max Average Power	1100W
BeamTrack Functions	N.A.
