Datasheet

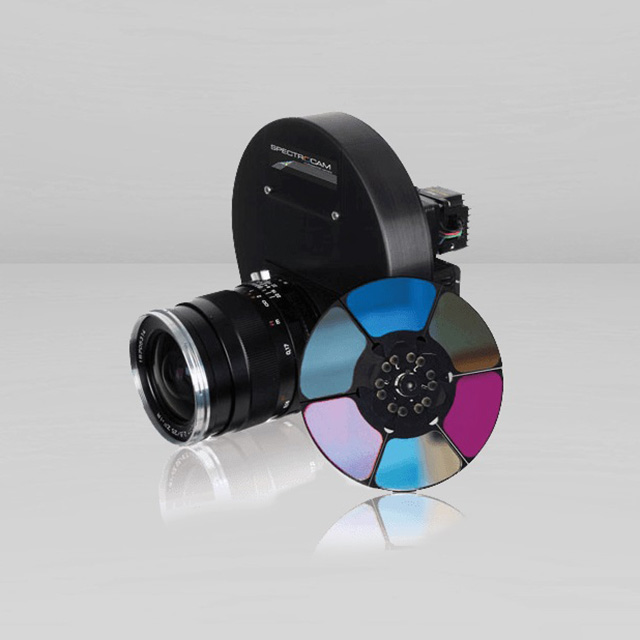

The SpectroCam? SWIR 640 utilizes the Raptor Owl 640×512 InGaAs camera. This high-resolution multispectral camera allows users with the proper filters to see objects' reflected spectra from 500nm to 1700nm.
Applications across multiple segments include medical imaging, surveillance, art conservation, and chemical remote sensing. The higher resolution allows for more pixels on target. Filter sets for specific applications exist.
Key Features
Sequential 6-8 band multispectral imaging
Full frame resolution at up to 25 frames/second
Interchangeable standard & custom spectral filters
Intuitive acquisition software
High-speed digital video output
OEM Customizations
Application-specific multispectral engine
Easy modular device integration
Optimized spectral bands & imaging
Proof of concept to high-volume production
Technical Specifications
| Spectral Response |
0.6μm to 1.7μm (600nm to 1700nm) |
| Resolution | 640x512 px |
| Sensor |
InGaAs 15μm Pixel Pitch |
| Spectral Bands | 6 Filters |
| Active Area |
7.68mm(H)x9.6mm(W) 12.29mm(D) |
| Frame Rate | 120fps |
| Optical Interface | F-Mount Standard (Manual Aperture & Focus), Range of Lenses Available, Adapters Available Upon Request |
| Digital Output | Camera Link |
| Dimensions (No Lens or Mount) | 136mm(H)x124mm(W)x105mm(D) |
| Weight | 908g |
