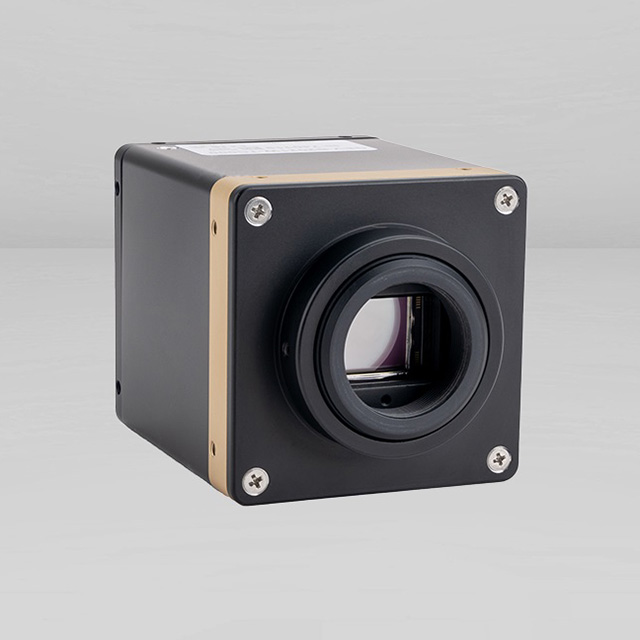

Torrent Photonics PixelCam Multispectral Cameras

Updated:2025-03-13

Brand: Torrent Photonics
Model: PixelCam
Description: PixelCam? multispectral cameras provide live imaging of 3 to 9 spectral bands, off-the-shelf or custom, at video rates. Simultaneous multichannel “snapshot” acquisition delivers rich, real-time data w
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Torrent Photonics PixelCam Multispectral Cameras Description：

PixelCam Snapshot Datasheet PixelCam 9-Band SWIR Datasheet

PixelCam? multispectral cameras provide live imaging of 3 to 9 spectral bands, off-the-shelf or custom, at video rates. Simultaneous multichannel “snapshot” acquisition delivers rich, real-time data without scene change or pixel shift.

Custom dichroic filter arrays are integrated into the focal plane array at wafer level to create robust linear and area sensors that extract high-contrast spectral information at specific visible and infrared wavelengths.

This breakthrough technology enables easy integration into handheld, mobile, and aerial cameras – all with the same frame rate, size, weight, and power consumption as monochrome cameras.

Custom VIS-NIR-SWIR Spectral Bands

Portable Size, Weight, and Power Consumption

Robust, High Reliability, Scalable Production

Applications

Aerial Mapping

Biomedical Imaging

Machine Vision

Product Screening

Remote Sensing

Unmanned Systems

Surveillance and Authentication

OEM Customization

Application-Specific Spectral Bands

Custom Pixel-Scale Mosaic Patterning

Mechanical and Environmental Requirements

Proof-of-Concept Prototypes to High-Volume Production

Sensor, Camera, and Housing Options

Product Highlight

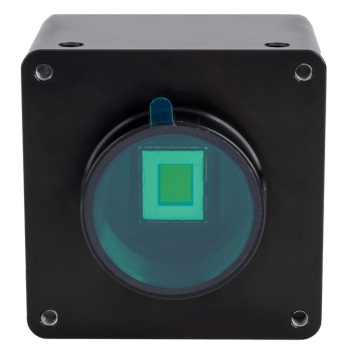

PixelCam? 9-Band SWIR camera

Discerns Between 9 Distinct Spectral Ranges from 1000nm to 1700nm

The PixelCam? 9-Band SWIR camera utilizes the latest developments in high-performance SWIR (Short Wave Infrared) image sensors. It combines Torrent’s patented pixelated filters to create a multispectral imaging system capable of discerning 9 distinct spectral ranges between 1000nm and 1700nm.

This opens the door to a wide range of applications where distinguishing the different SWIR “colors” enables identification of other subjects much more clearly. Using the SWIR spectrum enables deeper penetration into certain substances and even the ability to see right through them when a visible image would be occluded or even completely opaque

Technical Specifications

	4MP VIS+ NIR	56MP VIS+ NIR	Commercial / Scientific SWIR	Security & Defense SWIR
Spectral Response	400nm to 1000nm	400nm to 1000nm	0.9μm to 1.7μm (900nm -1700nm)	0.9μm to 1.7μm (900nm to 1700nm)
Resolution	2072x2072 px	8424x6032 px	1280x1024 px	640x512 px
Sensor	Si Interline CCD 7.4μm Pixel Pitch	Si Area CMOS 4.6μm Pixel Pitch	InGaAs 5μm Pixel Pitch	InGaAs 15μm Pixel Pitch
Filter Resolution	14.8μm Pixel Pitch Binned 2x2	13.8μm Pixel Pitch Binned 3x3	15μm Pixel Pitch Binned 3x3	15μm Pixel Pitch Binned 3x3
Spectral Bands *Custom Spectral Bands Available on Request	4 Band: RG B + NIR 450/100, 550/100, 650/100, 750LP 6 Band: RG B + 3xNIR 450/100, 550/100, 650/100, 740/60, 840/60, 940/60	9 Band 410/15,450/40,530/40, 575/20,610/20,650/25, 720/40, 790/20,850/40	4 Band 1120SP (900 -1120nm), 1220/70,1380/80, 1530LP	4 Band 1120SP (900 -1120nm), 1220/70, 1380/80, 1530 LP
Active Area	15.2mm(H)x15.2mm(W) 21.4mm(D) 4/3" Optical Format	27.75mm(H)x37.75mm(W)	6.4mm(H)x5.12mm(W) 8.2mm(D)	7.68mm(H)x9.6mm(W)
Frame Rate (Overclocked)	17 fps at Full Resolution	23.7 fps at Full Resolution	94.4 fps at Full Resolution	120 fps at Full Resolution
Optical Interface	F-Mount	M58 x0.75	C-Mount	C-Mount
Digital Output	GigE Vision	GigE Vision	GigE Vision	Mini Camera-Link
Dimensions (without lens or mount)	60mm(H)x60mm(W)x70.8mm(D)	70mm(H)x70mm(W)x70mm(D)	50mm(H)x50mm(W)x42.7mm(D)	50mm(H)x50mm(W)x69.4mm(D)
Weight	389g	380g	138g	282g
