Pulsar-1 7Z01203 Pulsar 1 Channel Interface

Updated:2025-03-13

Brand: Ophir
Model: Pulsar-1
Description: Ophir’s Pulsar interface turns your PC or laptop into a full fledged Ophir laser power/energy meter. Just install the software, plug the laser measurement sensor into the Pulsar and the USB cable from
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Pulsar-1 7Z01203 Pulsar 1 Channel Interface Description:

Ophir’s Pulsar interface turns your PC or laptop into a full fledged Ophir laser power/energy meter. Just install the software, plug the laser measurement sensor into the Pulsar and the USB cable from the Pulsar to the PC USB port. With the Pulsar-1, you can monitor each pulse at up to 25 kHz and utilize external trigger.

From laser measurement sensor to interface to PC.

Plug and play with most Ophir laser measurement sensors.

Record every energy pulse at up to 25 kHz.

Measure missing pulses & trigger output with external trigger.

Log power and energy, average, statistics, histograms and more with included StarLab application.

System Integrator Tools included: LabVIEW VIs, COM Object Interface.

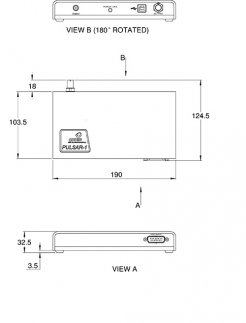

Pulsar-1 7Z01203 Pulsar 1 Channel Interface Drawing：

Pulsar-1 Drawing

Pulsar-1 7Z01203 Pulsar 1 Channel Interface Specification：

Thermal Sensors	Yes
Photodiode Sensors	Yes
Pyroelectric Sensors	Yes
BeamTrack Sensors	No
Statistics	Yes
Analog Out	No
Communication	USB
Trigger Input & Output	Yes
Power Supply	12V Power Supply (included)
Ethernet	N/A
RS232	N/A
GPIB	N/A
USB	25,000Hz
Bluetooth	N/A
On-Board Data Storage	No
Automation Interface	Yes
Labview VI's	Yes
