Brand: Ophir
Model: EA-1
Description: The EA-1 Ethernet Adapter turns your sensor into an Ethernet Laser Power Meter.
Data download

Feedback
WeChat

QQ

Online Service

The EA-1 Ethernet Adapter turns your sensor into an Ethernet Laser Power Meter. Features include:

From sensor direct to Ethernet with no PC connection

Power direct from the Ethernet bus

Supports thermopile, photodiode and pyroelectric smart sensors

PC application software package included

Allows remote monitoring via Telnet, HTTP and UDP protocols

Log power and energy, average, statistics, histograms and more with included StarLab application

New: Low Frequency Power on Photodiode sensors - power measurement based on pulse cycle (for VCSEL)

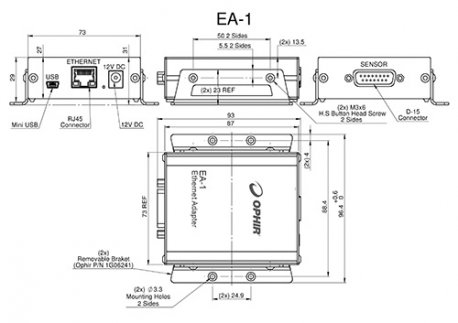

EA-1 Drawing

Thermal Sensors	Yes
Photodiode Sensors	Yes
Pyroelectric Sensors	Yes
BeamTrack Sensors	Yes
Statistics	Yes
Analog Out	No
Communication	Ethernet, USB
Trigger Input & Output	No
Power Supply	Via Ethernet or included Power Supply
Ethernet	Yes
RS232	N/A
GPIB	N/A
USB	Yes
Bluetooth	N/A
On-Board Data Storage	No
Automation Interface	Yes
Labview VI's	No
