Jewell Model A904 Clinometer Pak

Updated:2026-01-24

Brand: Jewell
Model: Model A904
Description: The Model 904-T Clinometer Pak unites our Model 900 Biaxial Clinometer with a weatherproof NEMA 4X (IP65) enclosure for indoor or outdoor applications that demand mechanical and environmental protecti
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell Model A904 Clinometer Pak Description：

Datasheet Outline Drawing

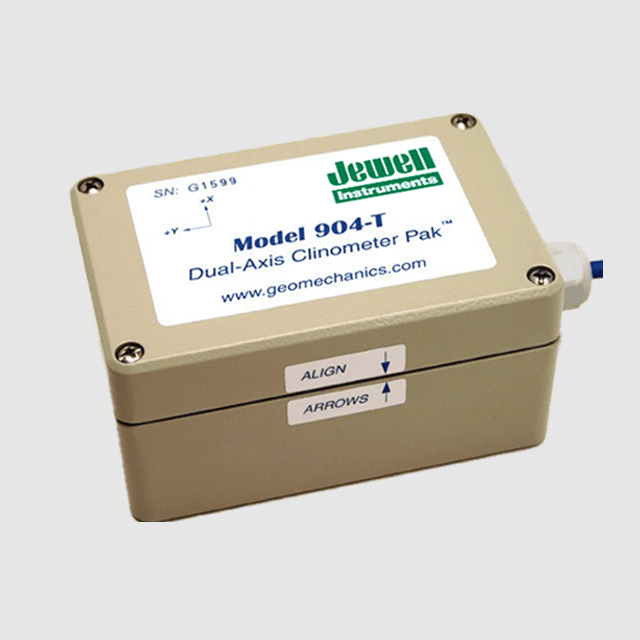

The Model 904-T Clinometer Pak unites our Model 900 Biaxial Clinometer with a weatherproof NEMA 4X (IP65) enclosure for indoor or outdoor applications that demand mechanical and environmental protection. Choose the high-gain, standard or wide-angle version, each with a different angular range. Clinometer Pak’s internal circuitry accepts a wide input voltage range and provides stable, low-impedance analog outputs for measurement by dataloggers, PLCs, digital voltmeters, and other recording devices. A temperature sensor is included as a standard feature. Options include viscous damping and 0-5 Volt output. This product is also available in a submersible stainless steel enclosure.

Specifications

	High-Gain	Standard	Wide-Angle
Angular Range (°)	±10	±25	±50
Resolution (°)¹	0.005	0.01	0.02
Repeatability (°)	0.02	0.02	0.02
Scale Factor (°/V)²	4	10	25
Non-linearity (%)³	1	2.5	7
Output Voltage (V)	±2.5 or 0-5
Channels	X-tilt, Y-tilt, Temperature
Kz Coefficient (°/C, typical)	±10 arcsec
Ks Coefficient (%/C, typical)	±0.03
Time Constant (seconds)	0.15
Natural Frequency (Hz)	10
Power	±2.5 Output: +8 to +24VDC 0-5 Output: +10.5 to +26.5 VDC 7mA, 250mV ripple max, reverse polarity protected
Environmental	Operating: -40°C to +80°C Storage: -40°C to +85°C 0-90% humidity
Materials	Die-cast aluminum, painted
