TS-120 12 V Shield/EE08 Package

Updated:2025-03-13

Brand: Apogee
Model: TS-120
Description: The TS-120 Fan-aspirated Radiation Shield model includes the TS-100 shield and an EE08-SS relative humidity probe at a special price. The unique aerodynamic shape and rugged, low-power fan make it the
Data download

Feedback
WeChat

QQ

Online Service

Product Details

TS-120 12 V Shield/EE08 Package Functional Characteristic：

User's Manual

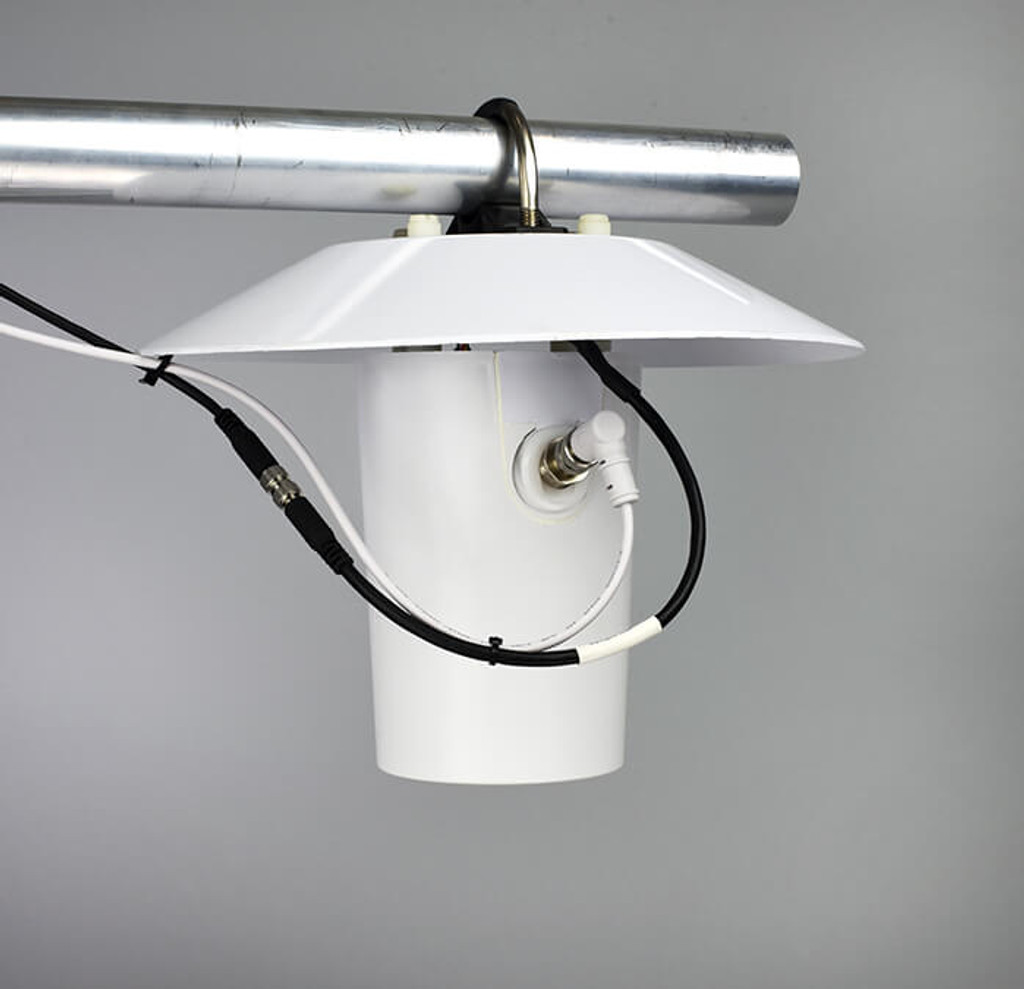

The TS-120 Fan-aspirated Radiation Shield model includes the TS-100 shield and an EE08-SS relative humidity probe at a special price. The unique aerodynamic shape and rugged, low-power fan make it the first research-grade fan-aspirated shield that is practical for use on batter or solar powered stations. The shield provides excellent sensor protection and accommodates various combinations of thermistors, PRTs, and humidity probes using one of the sensor port adapter plugs. Click here for a list of compatible sensors. If you use a different sensor, please contact us directly to discuss compatibility. Typical applications include air temperature and humidity measurement in weather networks, often for weather forecasting, and solar energy sites. Fan-aspirated shields are also important in the precise measurement of air temperature ad humidity gradients above the land surface and in climate change monitoring.

TS-120 12 V Shield/EE08 Package Specification：

Difference among Individual Replicate Shields	Less than 0.1 C
Aspiration Rate	6 m/s at full speed, 3 m/s at half speed
Fan Input Voltage Requirement	10.8 to 13.2 V DC
Fan Current Draw	80 mA at full-speed, 25 mA at half-speed
Fan Dust and Water Protection	IP55
Operating Temperature Range	-40 to 70 C
Dimensions	220 mm height, 270 mm diameter
Mass	840 g

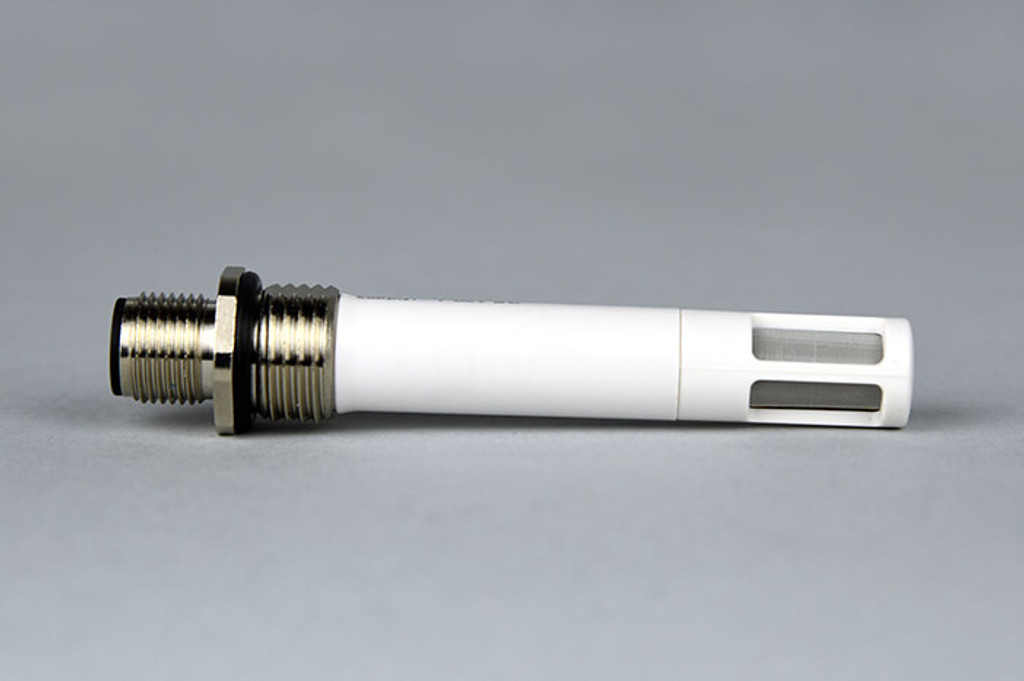

Humidity Probe	EE08-SS
