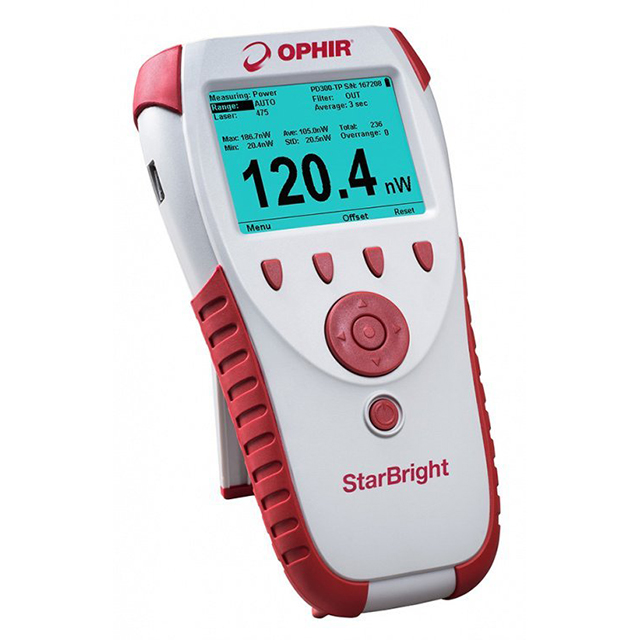

StarBright 7Z01580 Laser Power/Energy Meter Description:

Compatible with all standard Ophir thermal, BeamTrack, pyroelectric (PE-C series) and photodiode sensors

Brilliant color large size TFT 320x240 display

Choose between Digital with Bargraph, Analog Needle, Line Plot (for laser tuning), Pulse Chart, Pass/Fail, Position, Stability, Real Time Statistics displays

Sophisticated power and energy logging, including logging every point at up to 5000Hz with Pyro sensors

Math functions for advanced processing such as Density, Scale Factor, Normalize against base line, etc.

Can mix functions together and display the results graphically. Function results can also be logged.

USB Disk on Key (Thumb Drive) for nearly unlimited data storage.

USB and RS232 interfaces with StarLab PC applications and User Commands document

LabVIEW driver and COM Object Interface

Pulsed Power measurements with Thermopile sensors

Exposure measurement (Energy Summing) with Photodiode sensors

New: Low Frequency Power on Photodiode sensors - power measurement based on pulse cycle (for VCSEL)

Select between English, Japanese, Russian, and Chinese interfaces

Soft keys and menu driven functions with context sensitive help

Compact handheld design with rubberized bumpers and optimized kickstand

Backlighting and rechargeable battery

Scalable Analog Output

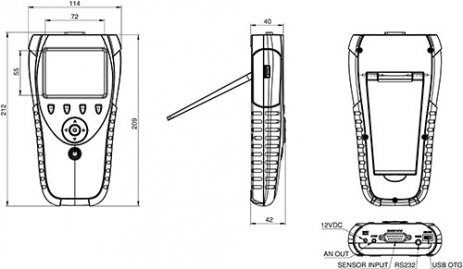

StarBright 7Z01580 Laser Power/Energy Meter Drawing：

StarBright Drawing

StarBright 7Z01580 Laser Power/Energy Meter Specification：
