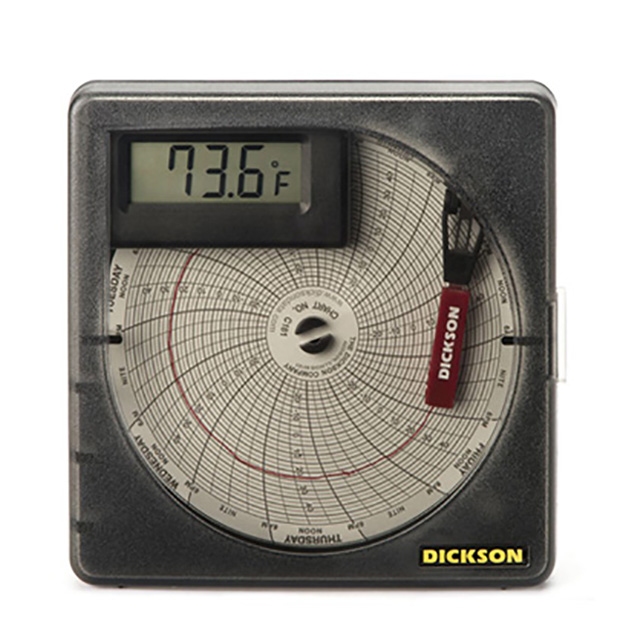

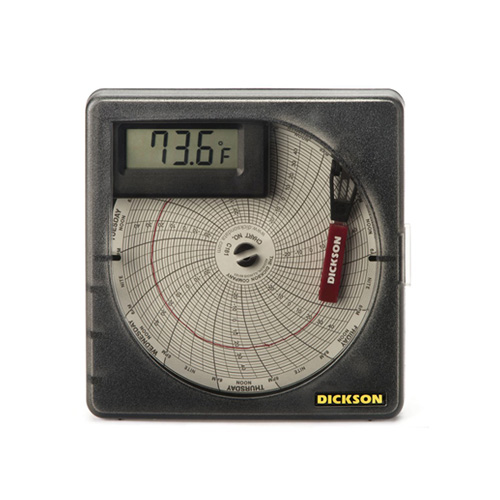

A great size coupled with 2-3 year battery life makes this 4-inch (101mm) temperature chart recorder a great solution for refrigerators, freezers and HVAC applications.
Features
Digital Display
7-Day or 24-Hour recording
F/C Switchable
2-3 Year Battery Life
Specifications
| Ambient Operating RH Conditions | 0-95% RH non-condensing |
| Ambient Operating Temperature Conditions | -22.0 to 122.0F (-30.0 to 50.0C) |
| Approvals | CE |
| Battery Life (Avg) | 3 Years |
| Calibration Options | N100, N300, N400 |
| Channels | CH1: Temperature |
| Chart Rotation Speed | 24 Hour or 7 Day |
| Dimensions | 2.4 x 5.2 x 5.2in |
| Display Accuracy | 1.8F |
| Display Dimensions | 1.8 x 0.36in |
| Display Resolution | 0.1 |
| Display Type | LCD |
| Enclosure | Black ABS and Polycarbonate |
| Included Accessories | “One AA Battery, Red Pen and Quick Start Guide. *Charts sold separately” |
| IP Rating | 21 |
| Mounting Options | Free Standing or Wall Mounted |
| Power Source | Battery; One AA Battery (User Replaceable) |
| Response Time | 11 Minutes to 63% of Full Scale (in air moving 5′ per second) |
| Temperature Accuracy | ?± 2% Of Full Scale |
| Temperature Range | SL4350: -22.0 to 122.0F (-30.0 to 50.0C) SL4100: 0.0 to 100.0F (-18.0 to 37.0C) |
| Temperature Sensor Type | Precise spiral wound bi-metallic strip transducer |
| Unit Weight | 3 lbs |
| Units/Pkg | 1 |
| Warranty | 12-Month Limited |
