PE25BF-DIF-C 7Z02941 Pyroelectric Energy Meter

Updated:2025-03-13

Brand：Ophir
Model：PE25BF-DIF-C
Description: The PE25BF-DIF-C is a pyroelectric energy meter with a diffuser for concentrated beams. It has a 20mm aperture and can measure energies from 100μJ up to 10J. It can operate at repetition rates up to 2
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PE25BF-DIF-C 7Z02941 Pyroelectric Energy Meter Description：

The PE25BF-DIF-C is a pyroelectric energy meter with a diffuser for concentrated beams. It has a 20mm aperture and can measure energies from 100μJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.24 - 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

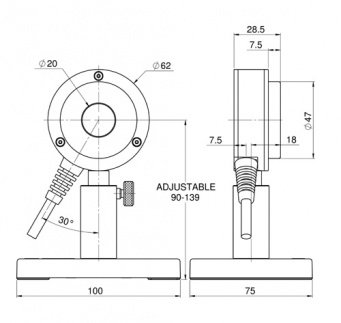

PE25BF-DIF-C 7Z02941 Pyroelectric Energy Meter Drawing：

PE25BF-DIF-C Drawing

PE25BF-DIF-C 7Z02941 Pyroelectric Energy Meter Specifications：

Absorber Type	BF with diffuser
Aperture	?20mm
Spectral Range	0.24-2.2μm
Energy Range	100μJ-10J
Maximum Frequency	250Hz
Dimensions	?62 W x 29 D (mm)
Max Pulse Energy	10J
Max Average Power Density	120W/cm2
Max Pulse Width	20 ms
Damage Threshold(for <100ns)	4J/cm2
Damage Threshold(for 2ms)	60J/cm2
Max Average Power	20W
