PE25-C 7Z02937 General Purpose Pyroelectric Energy Meter

Updated:2025-03-13

Brand：Ophir
Model：PE25-C
Description: The PE25-C is a general purpose pyroelectric energy meter with a 24mm aperture. It can measure energies from 8μJ up to 10J. It can operate at repetition rates up to 10kHz and covers the spectral range
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PE25-C 7Z02937 General Purpose Pyroelectric Energy Meter Description：

The PE25-C is a general purpose pyroelectric energy meter with a 24mm aperture. It can measure energies from 8μJ up to 10J. It can operate at repetition rates up to 10kHz and covers the spectral range from 0.15 - 3μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

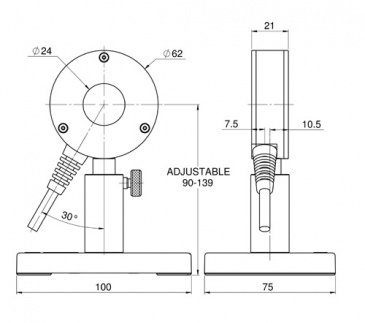

PE25-C 7Z02937 General Purpose Pyroelectric Energy Meter Drawing：

PE25-C Drawing

PE25-C 7Z02937 General Purpose Pyroelectric Energy Meter Specifications：

Absorber Type	metallic
Aperture	?24mm
Spectral Range	0.15-3μm
Energy Range	8μJ-10J
Maximum Frequency	10,000Hz
Dimensions	?62 W x 21 D (mm)
Max Pulse Energy	10J
Max Average Power Density	20W/cm2
Max Pulse Width	5ms
Damage Threshold(for <100ns)	0.1J/cm2
Damage Threshold(for 2ms)	6J/cm2
Max Average Power	15W
