PD10-pJ-C 7Z02945 photodiode Energy Meter For Very Low Energies

Updated:2025-03-13

Brand：Ophir
Model：PD10-pJ-C
Description: The PD10-pJ-C is a photodiode energy meter for very low energies with a 10mm aperture. It can measure energies from 10pJ up to 180nJ. It can operate at repetition rates up to 20kHz and covers the spec
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PD10-pJ-C 7Z02945 photodiode Energy Meter For Very Low Energies Description：

The PD10-pJ-C is a photodiode energy meter for very low energies with a 10mm aperture. It can measure energies from 10pJ up to 180nJ. It can operate at repetition rates up to 20kHz and covers the spectral range from 0.2 - 1.1μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

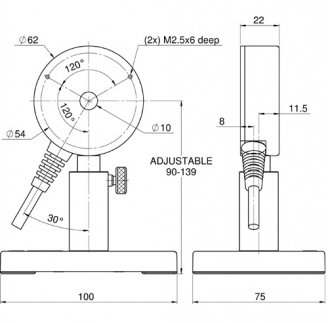

PD10-pJ-C 7Z02945 photodiode Energy Meter For Very Low Energies Drawing：

PD10-pJ-C Drawing

PD10-pJ-C 7Z02945 photodiode Energy Meter For Very Low Energies Specifications：

Aperture	?10mm
Spectral Range	0.2-1.1μm
Energy Range	10pJ-180nJ
Maximum Frequency	20,000Hz
Dimensions	?62 W x 22 D (mm)
Max Pulse Energy	180nJ
Max Average Power Density	5W/cm2
Max Pulse Width	0.005 ms
Max Average Power	0.5mW
