Keanley KL-3500 Data Collector

Updated:2025-03-13

Brand: Keanley
Model: KL-3500
Description: KL-3500 is specifically designed for SDI protocol and DDI mode, RS485 and RS232, as well as analog and pulse sensors. The data logger has 12 ports (6 sensor ports, 2 485 ports with power supply, 2 232
Data download

Feedback
WeChat

QQ

Online Service

Product Details

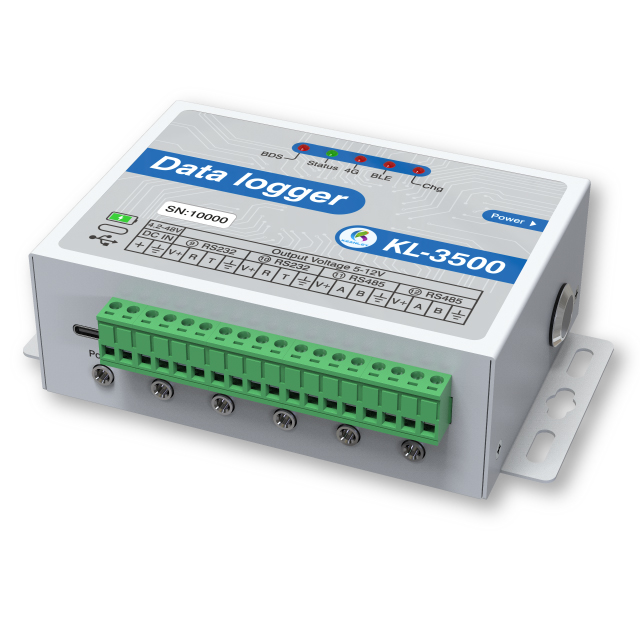

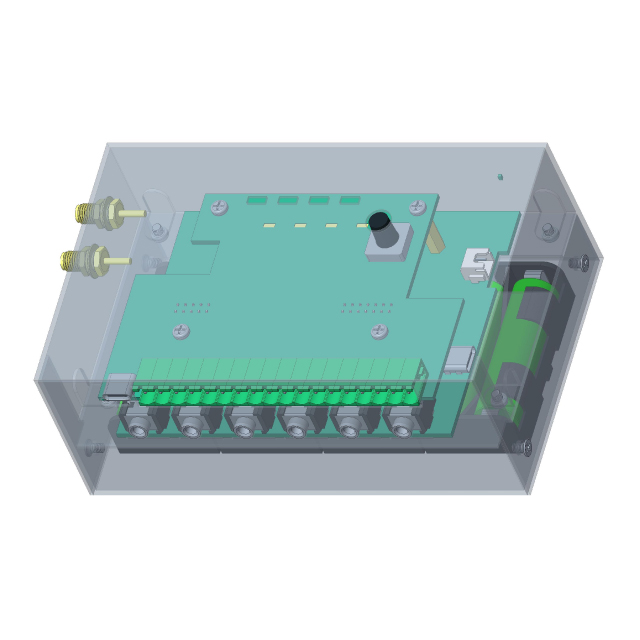

KL-3500 is specifically designed for SDI protocol and DDI mode, RS485 and RS232, as well as analog and pulse sensors. The data logger has 12 ports (6 sensor ports, 2 485 ports with power supply, 2 232 ports with power supply, 1 atmospheric pressure temperature port, and 1 Beidou data port). Please refer to the interface instructions in the software interface for details. There is a 2P 3.81 terminal power supply port, 2 TYPE-C ports (both can provide power and communication), 1 reset button, 4 status indicator lights, D9 is the running status indicator light, D10 is the Beidou status indicator light, D11 is the 4G status indicator light, D12 is the Bluetooth status indicator light, 2 antenna interfaces, one is the 4G communication antenna, and one is the GPS antenna. The bottom is a battery compartment that can use 8 nickel hydrogen batteries or alkaline batteries.
