current position:home page>Products>optical instrument>Ophir>

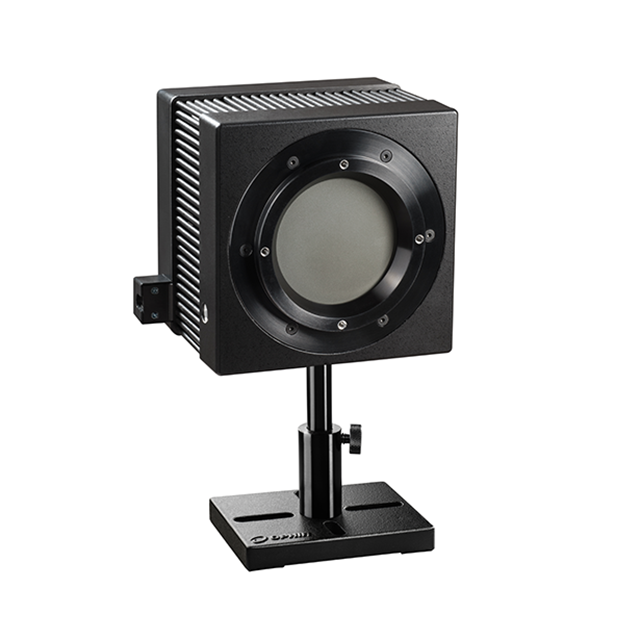

BDFL1500A-BB-65 P/N7Z17203 Beam Dump

Updated:2025-03-13

Brand: Ophir
Model: BDFL1500A-BB-65
Description: The BDFL1500A-BB-65 is a fan cooled beam dump with a 65mm aperture for up to 1500W. It can withstand power densities to 1.5kW/cm2 at full power and has a spectral range from 0.19 to 20μm.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

BDFL1500A-BB-65 P/N7Z17203 Beam Dump Introduction：

The BDFL1500A-BB-65 is a fan cooled beam dump with a 65mm aperture for up to 1500W. It can withstand power densities to 1.5kW/cm2 at full power and has a spectral range from 0.19 to 20μm.

BDFL1500A-BB-65 P/N7Z17203 Beam Dump Drawing：

BDFL1500A-BB-65 Drawing

BDFL1500A-BB-65 P/N7Z17203 Beam Dump Specification：

Aperture	?65mm
Spectral Range	0.19 - 20μm
Power Range	Up to 1500W
Dimensions	128 L x 128 W x 129 D (mm)
Max Average Power Density	1.5kW/cm2
Max Energy Density (for <100ns)	0.3J/cm2
Max Energy Density (for 2ms)	10J/cm2
Backscatter	N.A.
