BD10K-W P/N7Z17205 Beam Dump

Updated:2025-03-13

Brand: Ophir
Model: BD10K-W
Description: The BD10K-W is a water cooled beam dump for up to 11kW with a 45mm aperture. It has a deflecting cone and annular absorber that withstands high power densities to 10kW/cm2. It can be used over the spe
Data download

Feedback
WeChat

QQ

Online Service

Product Details

BD10K-W P/N7Z17205 Beam Dump Introduction：

The BD10K-W is a water cooled beam dump for up to 11kW with a 45mm aperture. It has a deflecting cone and annular absorber that withstands high power densities to 10kW/cm2. It can be used over the spectral range from 0.8 to 20μm.

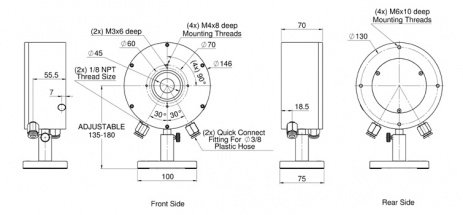

BD10K-W P/N7Z17205 Beam Dump Drawing：

BD10K-W Drawing

BD10K-W P/N7Z17205 Beam Dump Specification：

Aperture	?45mm
Spectral Range	0.8 - 20μm
Power Range	Up to 11,000W
Dimensions	?146 W x 70 D (mm)
Max Average Power Density	4kW/cm2
Max Energy Density (for <100ns)	N.A.
Max Energy Density (for 2ms)	18J/cm2
Backscatter	N.A.
