ALUSYS Measuring System

Updated:2025-03-13

Brand: Hukseflux
Model：ALUSYS
Description: ALUSYS is a measuring system for trend-monitoring and mobile survey of heat flux and surface temperature in industrial environments. Sensors and electronics have the robustness necessary for this appl
Data download

Feedback
WeChat

QQ

Online Service

Product Details

ALUSYS Measuring System： User's Manual Datasheet

ALUSYS Measures Heat Fluxes and Surface Temperatures in Demanding Environments

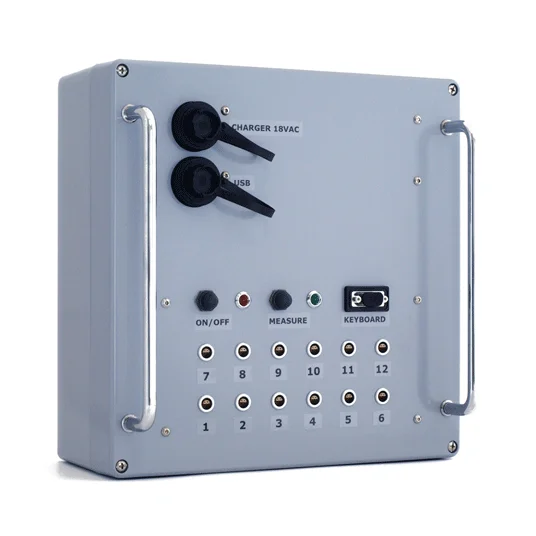

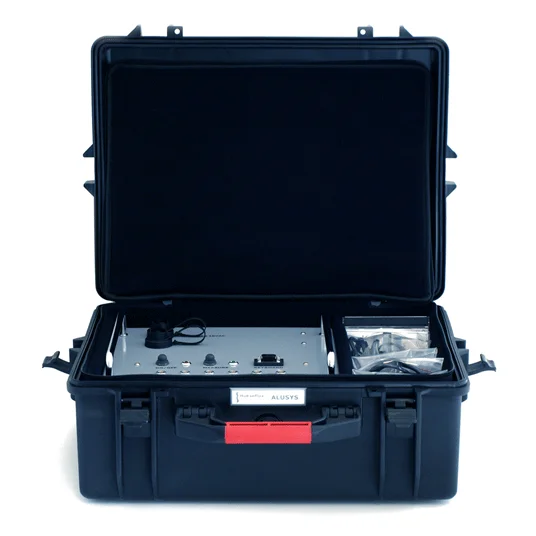

ALUSYS measures heat fluxes and surface temperatures in demanding environments. It is designed for industrial surveys, for example surveys of aluminium smelters / furnaces. The ALUSYS system employs dedicated sensors and electronics. Their high accuracy and sensitivity ensure that ALUSYS will still measure under circumstances where competing systems no longer perform reliable measurements; i.e. down to very low heat fluxes. The measurement and control unit, MCU, has a robust aluminium housing and accepts 12, or optionally 3, sensors. The system generates a measurement file, including a time-stamp, heat flux and temperature for all sensors. The measurement data are stored in the MCU and are later downloaded to a PC. The user is responsible for data analysis. A PC or the Keyboard Display may be used for real time measurement review and control of the data storage.

With HF01 Heat Flux Sensors

Powered and charged using a low voltage, ALUSYS is safe to use. The system can operate for a limited time on MCU’s internal rechargeable battery. For all information on the HF01 heat flux and surface temperature sensors, see the HF01 manual. Optionally other sensor models may be used.

Suggested Use

Surveys of industrial installations, for example of aluminium melting furnaces

Areas of Application

Industrial monitoring and control / heat flux and heat transfer measurement

ALUSYS Measuring System Specifications：

Measurand	Heat flux (12 x), surface temperature (12 x)
Number of measurement locations	12 (see options)
Heat flux sensor (see options)	Model HF01 with connector at cable end
Included extension cable	12 x low temperature extension cable with 2 connectors (length 15 m)
Rated operating temperature ranges	:
Data storage capacity	4 MB > 1 day of data
Required data analysis	To be performed by the user
IP protection class	:
Sensor & high temperature cable	IP68
Low temperature extension cable	IP67
MCU and Keyboard Display	IP63
Data display	On Keyboard Display
MCU specifications	:
Voltage measurement accuracy	0.5 x 10?? V
Rated power supply voltage	16 to 40 VDC
Adapter power supply	100 – 240 VAC 50/60 Hz
Connection to PC	Via USB
Rated operating temperature range MCU	-15 to +50 °C
Options	? ALUSYS with 3 x heat flux and temperature sensor ? Low temperature extension cable with 2 connectors, matching cable connector and chassis connector (typical length 15 m) ? Other sensor models than HF01 ? Sensors and MCU with extended rated operating temperature range
