The 20C-UAS is a very compact OEM thermal power/energy laser sensor with built in electronics and dimensions only 38x38x34mm. It has a 12mm aperture and measures from 10mW to 4W stand alone and up to 20W when heat sinked. It can measure energy from 6mJ to 10J. Its broadband coating covers the spectral range from 0.19 to 20μm. It has analog and RS232 output.

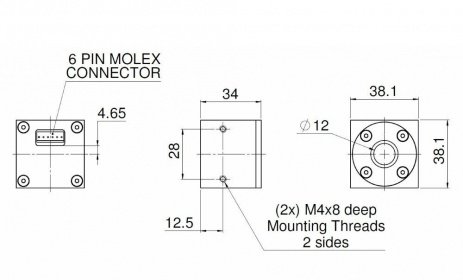

20C-UAS Drawing
| Aperture | ?12mm |
| Spectral Range | 0.19-20μm |
| Power Range | 10mW-20W |
| Energy Range | 6mJ-10J |
| Dimensions | 38 L x 38 W x 34 D (mm) |
| Max Average Power Density | 23kW/cm2 at 20W |
| Response Time | 0.8 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10 J/cm2 |
| Max Average Power | 20W heat sinked |
| Communication | RS232, Analog |
